Combination System

Occasionally metal fragments make their way into a packaging line. These can be from metal shaving from drilling or cutting, loose screws, nuts or washers, foreign objects from persons in the packaging area, such as jewelry or tool equipment. These objects can pose a risk to the consumers and to your reputation.By law in Australia your packaging must contain at least the net weight that the packet advertises. To avoid over filling your packaging with your product our aim is to get as close to the net weight as possible. Getting as close to the net weight has a direct result in minimising wastage.

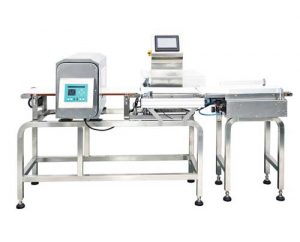

The use of an inspection system such as a combined metal detector and check weigher means that you can be reassured that your packaging line is operating efficiently and risk free.The ADM-MC series Metal Detector Check Weigher provides a compact system, with both left to right and right to left configurations available.

Features

Specifications

Model ADM-MC2100 ADM-MC2150 ADM-MC3150 ADM-MC3200
Detection Height 100mm 150mm 150mm 200mm
Detection Width 300mm 300mm 400mm 400mm
Detection Ability Fe ⌀0.8mm SS ⌀1.5mm Fe ⌀1.0mm SS ⌀2.0mm Fe ⌀1.0mm SS ⌀2.0mm Fe ⌀1.2mm SS ⌀2.5mm
Weight Range 10-2000g 10-2000g 10-6000g 10-6000g
Weighing Ability +/- 1.0g +/- 1.0g +/- 3.0g +/- 3.0g
Removing method Pusher arm, air blow Pusher, arm, air blow Pusher Pusher
Speed 70 ppm 70 ppm 60 ppm 60 ppm
Power source 240V 50Hz 240V 50Hz 240V 50Hz 240V 50Hz
Rated output 400W 450W 600w 650w
Product Size 350(L) x 300(W) x 100(H) 350(L) x 300(W) x 150(H) 450(L) x 400(W) x 150(H) 450(L) x 400(W) x 200(H)
