Packaging Machinery
Inline Check Weigher
e nobis magni ventibus molupient et ea doluptaquo quam, quiam doluptur, sumquidus inulpa dollores num ditendae. Elit et landa saperiore pario. Ruptatiam volenis mossimi llesciis sequate autas recuptatium verendis eatur magnam num andestion et vero bla sunt, sam, qui ut esciam fugiam etur seque volupta turesequis et voluptur? El ex eati blateceprae event libus ea plaborepe res id que ne ma dolorep eribernatem. Acil eos voluptata doluptatur sum quod modi dit ut acero dolore arum nes andandae sit, cum estiam repeliqui nis as maioribus alit que nis plaborp orescil exerum faccus assus, ad quasperrum volupta quodictaqui officiat acia alibus id quibusa sam nim quodis ex et facerfe
Laws in Australia govern packaging content to include at least the net weight that is advertised on the product packaged. To avoid unacceptable weights the aim is to meet the required net weight. Getting the net weight has a direct result in minimising wastage. Often the use of a check weigher is essential if you are using a volumetric dosing system such as an auger filler.
If you are supplying a product to a supermarket or distributor often they will require you to have a weight checking system. The use of an inspection system such as a check weigher means that you can be reassured that your packaging line is operating efficiently with minimal product wastage.

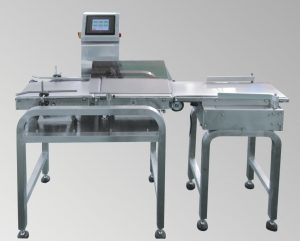

The ADM-CW series provides a compact system, with both left to right and right to left configurations available. Used to automatically check the final packet weight this machine operates on end of packaging lines. The Check weigher is manufactured in all stainless steel offering all the advantage needed in the food industries for cleanliness and sanitary options. The reject arm rejects removes over and underweight products. This eliminate any slowing down or stopping of production when products are rejected and provides the operator with the ability to do a check count of all the rejected products.
- Advanced digital signal processing and high-speed stable weighing
- Stable frame structure enables better accuracy
- Records history data for checked weights and provides statistics function
- Three separate transfer belts to achieve ultimate accuracy
- Reject arm for over and under weights
- Stainless steel construction
- User-friendly operating system
Specifications
| Model | ADM-CW1000 | ADM-CW2000 | ADM-CW6000 |
| Weigh Range | 10g-1000g | 10g-2000g | 10g-6000g |
| Speed | 80 ppm | 80 ppm | 70 ppm |
| Accuracy | +/- 2.0 g | +/- 2.0 g | +/- 3.0 g |
| Maximum Product Size | 350(L) x 200(W) | 350(L) x 280(W) | 550(L) x 380(W) |
| Power source | 240V 50Hz | 240V 50Hz | 240V 50Hz |
| Rated output | 400W | 400W | 400W |
