ADM Case Sealer and Erectors
e nobis magni ventibus molupient et ea doluptaquo quam, quiam doluptur, sumquidus inulpa dollores num ditendae. Elit et landa saperiore pario. Ruptatiam volenis mossimi llesciis sequate autas recuptatium verendis eatur magnam num andestion et vero bla sunt, sam, qui ut esciam fugiam etur seque volupta turesequis et voluptur? El ex eati blateceprae event libus ea plaborepe res id que ne ma dolorep eribernatem. Acil eos voluptata doluptatur sum quod modi dit ut acero dolore arum nes andandae sit, cum estiam repeliqui nis as maioribus alit que nis plaborp orescil exerum faccus assus, ad quasperrum volupta quodictaqui officiat acia alibus id quibusa sam nim quodis ex et facerfe
The ADM-VH1 200kg Power Sieve is a vibratory hopper system that is used to break up and screen product to improve processing efficiency. At ADMPA we developed the Industrial Power Sieve to break up clumped sultanas and raisins to improve the packaging process and the final product display quality. Fully constructed from stainless steel for durability and hygienic use in the food processing industry, the Industrial Power Sieve uses Swiss vibration mount and Italian vibromotors to transfer up to 2 tonnes of vibration force to the product. Reliable and built to the highest standards, the ADMPA Industrial Power Sieve includes a fully automated feeding system to integrate seamlessly into your existing packaging machinery line.
- Durable reinforced stainless steel construction
- Interchangeable mesh sizes
- High/low sensor for fast and slow feeds
- Up to 5G acceleration to break up products
- Free standing or mountable to systems
- Easy access for cleaning

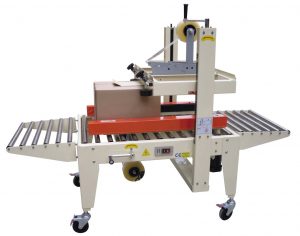

ADM – A Series Case Sealers
The A Series case sealers can be found in most food processing and packaging plants performing repetition sealing applications. Generally used as end of line systems, though they are not limited in this field. They are used in other fields that apply to transport, mail, mining, pharmaceutical, beverage, hospitality, fashion, cosmetics, warehouse, franchises and more.
Specifications
| Model | ADM-A30_ | ADM-A50_ | ADM-A60_ |
| Belt Drive | 2 x Side Drive | 2 x Side Drive | 2 x Top, 2 x Bottom |
| Safety | EM stop | EM stop | EM stop |
| Carton Size | L130plus×W80-300×H90-300mm | L150plus×W150-500×H120-520mm | L150plus×W150-500×H120-520mm |
| Speed | 20cpm | 15cpm | 15cpm |
| Tape Width | 48mm (S=Standard), 60mm, 75mm (W=Wide Optional) | ||
| Table Height | Mim.560mm, Max.760mm | ||
| Machine Size | L1020lus×W850×H1390mm | L1020×W850×H1390mm | L1020×W850×H1480mm |
| Power supply | 240V 50Hz 0.3kW | 240V 50Hz 0.3kW | 240V 50Hz 0.4kW |
| Weight | 130kg | 130kg | 130kg |

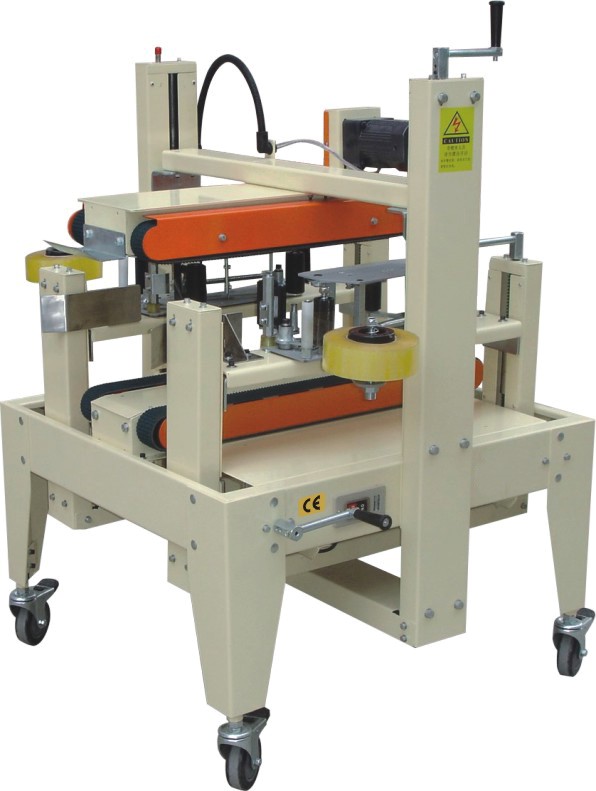

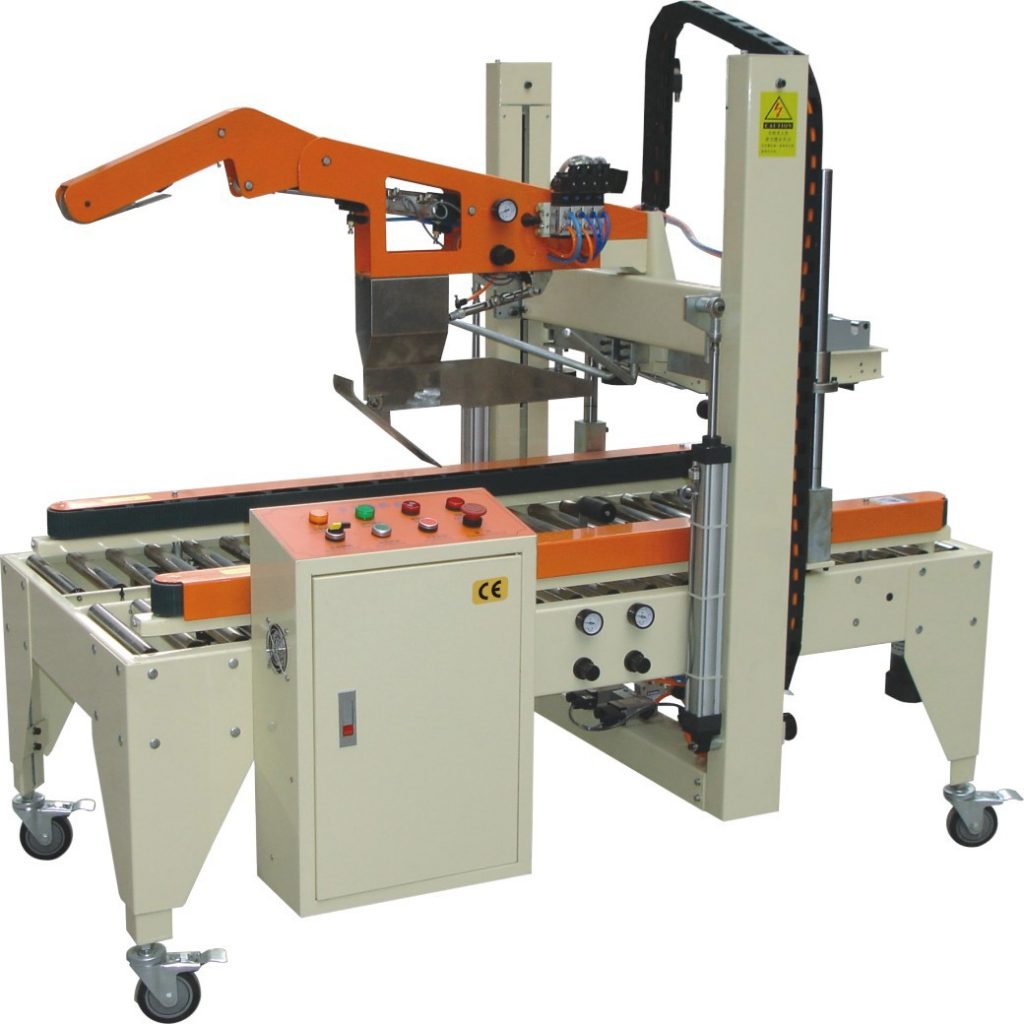

ADM - B Series Case Sealers
The B Series case sealers are more sophisticated systems offering automatic approach to case sealing as well as complexity. This includes automatic height adjustment, side sealing and automation case closing as options. The are used in plants where automation and efficiency is a priority. They can be located in many industries including food, transport, mail, mining, pharmaceutical, beverage, hospitality, fashion, cosmetics, warehouse, franchises and more.
Specifications
| Model | ADM-B50_G | ADM-B60_G | ADM-A60_G |
| Feature | Manual height & width adjustment | Auto flap close, height & width adjustment | Manual Adjustment |
| Belt Drive | 2 x Side, 2 x Top | 2 x Side Drive | 2 x Top, 2 x Bottom |
| Safety | Guarding & EM stop | Guarding & EM stop | Guarding & EM stop |
| Carton Size | L150plus×W150-500×H120-520mm | L150plus×W150-500×H120-520mm | L150plus×W150-500×H120-520mm |
| Speed | 10-20cpm | 10-15cpm | 10-20cpm |
| Tape Width | 48mm (S=Standard), 60mm, 75mm (W=Wide Optional) | ||
| Table Height | Mim.560mm, Max.760mm | ||
| Machine Size | L1200×W920×H1390mm | L1700×W920×H1500mm | L900×W950×H1280mm |
| Power supply | 240V 50Hz 0.4kW | 240V 50Hz 0.5kW | 240V 50Hz 0.4kW |
| Weight | 190kg | 130kg | 160kg |
