TOTAL PACKAGING SOLUTIONS
Combination System
e nobis magni ventibus molupient et ea doluptaquo quam, quiam doluptur, sumquidus inulpa dollores num ditendae. Elit et landa saperiore pario. Ruptatiam volenis mossimi llesciis sequate autas recuptatium verendis eatur magnam num andestion et vero bla sunt, sam, qui ut esciam fugiam etur seque volupta turesequis et voluptur? El ex eati blateceprae event libus ea plaborepe res id que ne ma dolorep eribernatem. Acil eos voluptata doluptatur sum quod modi dit ut acero dolore arum nes andandae sit, cum estiam repeliqui nis as maioribus alit que nis plaborp orescil exerum faccus assus, ad quasperrum volupta quodictaqui officiat acia alibus id quibusa sam nim quodis ex et facerfe
Combination System
Occasionally metal fragments make their way into a packaging line. These can be from metal shaving from drilling or cutting, loose screws, nuts or washers, foreign objects from persons in the packaging area, such as jewelry or tool equipment. These objects can pose a risk to the consumers and to your reputation.By law in Australia your packaging must contain at least the net weight that the packet advertises. To avoid over filling your packaging with your product our aim is to get as close to the net weight as possible. Getting as close to the net weight has a direct result in minimising wastage.

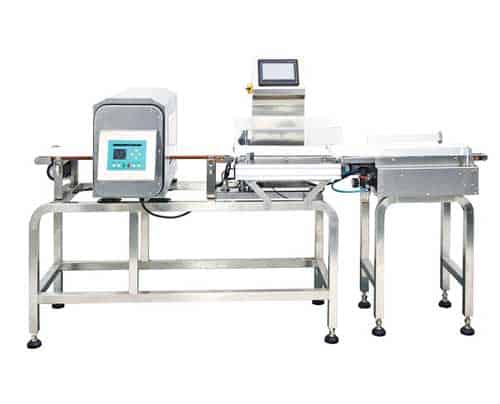

The use of an inspection system such as a combined metal detector and check weigher means that you can be reassured that your packaging line is operating efficiently and risk free.The ADM-MC series Metal Detector Check Weigher provides a compact system, with both left to right and right to left configurations available.
Features
- Stainless steel construction
- The combined metal detector and check weigher reduces the footprint and capital cost
- Removes product mixed with mental and unqualified weight separately
- Adopts advanced dynamic weighing and digital processing system with high detection sensitivity
- The memory function can store defective product information.
- User friendly.
- Store up to 99 programs
- Adjustable sensitivity
Specifications
| Model | ADM-MC2100 | ADM-MC2150 | ADM-MC3150 | ADM-MC3200 |
| Detection Height | 100mm | 150mm | 150mm | 200mm |
| Detection Width | 300mm | 300mm | 400mm | 400mm |
| Detection Ability | Fe ⌀0.8mm SS ⌀1.5mm | Fe ⌀1.0mm SS ⌀2.0mm | Fe ⌀1.0mm SS ⌀2.0mm | Fe ⌀1.2mm SS ⌀2.5mm |
| Weight Range | 10-2000g | 10-2000g | 10-6000g | 10-6000g |
| Weighing Ability | +/- 1.0g | +/- 1.0g | +/- 3.0g | +/- 3.0g |
| Removing method | Pusher arm, air blow | Pusher, arm, air blow | Pusher | Pusher |
| Speed | 70 ppm | 70 ppm | 60 ppm | 60 ppm |
| Power source | 240V 50Hz | 240V 50Hz | 240V 50Hz | 240V 50Hz |
| Rated output | 400W | 450W | 600w | 650w |
| Product Size | 350(L) x 300(W) x 100(H) | 350(L) x 300(W) x 150(H) | 450(L) x 400(W) x 150(H) | 450(L) x 400(W) x 200(H) |
