ADMPA Packaging Machines - ADM-CW

Packaging Machinery

Inline Check Weigher

e nobis magni ventibus molupient et ea doluptaquo quam, quiam doluptur, sumquidus inulpa dollores num ditendae. Elit et landa saperiore pario. Ruptatiam volenis mossimi llesciis sequate autas recuptatium verendis eatur magnam num andestion et vero bla sunt, sam, qui ut esciam fugiam etur seque volupta turesequis et voluptur? El ex eati blateceprae event libus ea plaborepe res id que ne ma dolorep eribernatem. Acil eos voluptata doluptatur sum quod modi dit ut acero dolore arum nes andandae sit, cum estiam repeliqui nis as maioribus alit que nis plaborp orescil exerum faccus assus, ad quasperrum volupta quodictaqui officiat acia alibus id quibusa sam nim quodis ex et facerfe

Laws in Australia govern packaging content to include at least the net weight that is advertised on the product packaged. To avoid unacceptable weights the aim is to meet the required net weight. Getting the net weight has a direct result in minimising wastage. Often the use of a check weigher is essential if you are using a volumetric dosing system such as an auger filler.

If you are supplying a product to a supermarket or distributor often they will require you to have a weight checking system. The use of an inspection system such as a check weigher means that you can be reassured that your packaging line is operating efficiently with minimal product wastage.

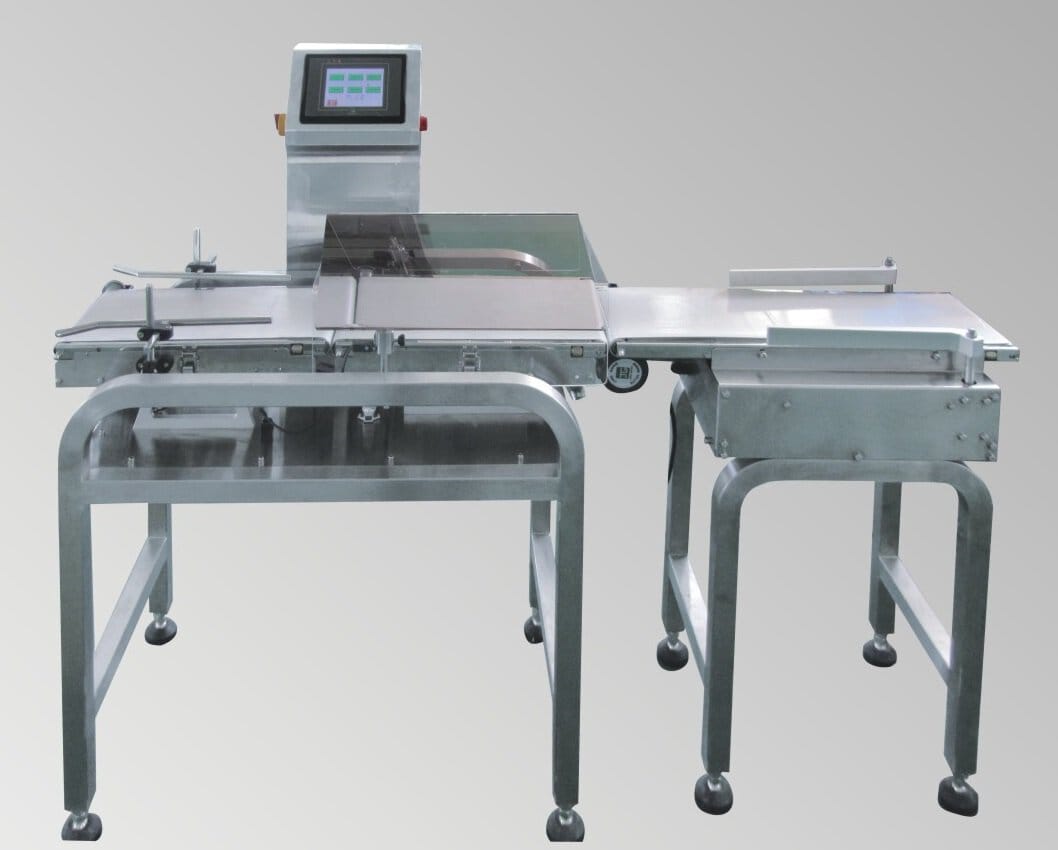

The ADM-CW series provides a compact system, with both left to right and right to left configurations available. Used to automatically check the final packet weight this machine operates on end of packaging lines. The Check weigher is manufactured in all stainless steel offering all the advantage needed in the food industries for cleanliness and sanitary options. The reject arm rejects removes over and underweight products. This eliminate any slowing down or stopping of production when products are rejected and provides the operator with the ability to do a check count of all the rejected products.

Specifications

Model ADM-CW1000 ADM-CW2000 ADM-CW6000
Weigh Range 10g-1000g 10g-2000g 10g-6000g
Speed  80 ppm 80 ppm 70 ppm
Accuracy +/- 2.0 g +/- 2.0 g +/- 3.0 g
Maximum Product Size 350(L) x 200(W) 350(L) x 280(W) 550(L) x 380(W)
Power source 240V 50Hz 240V 50Hz 240V 50Hz
Rated output 400W 400W 400W

Enquire about our

Check Weigher
