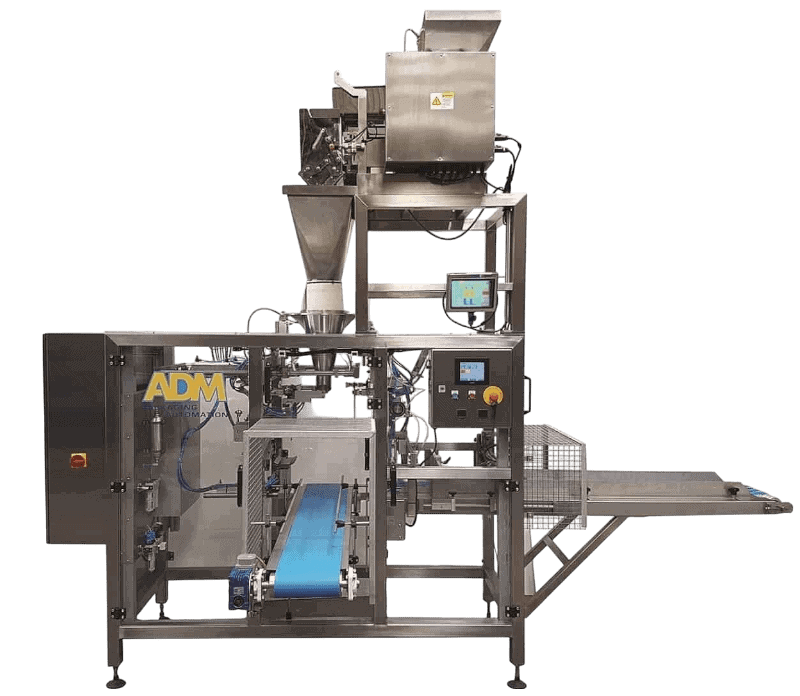

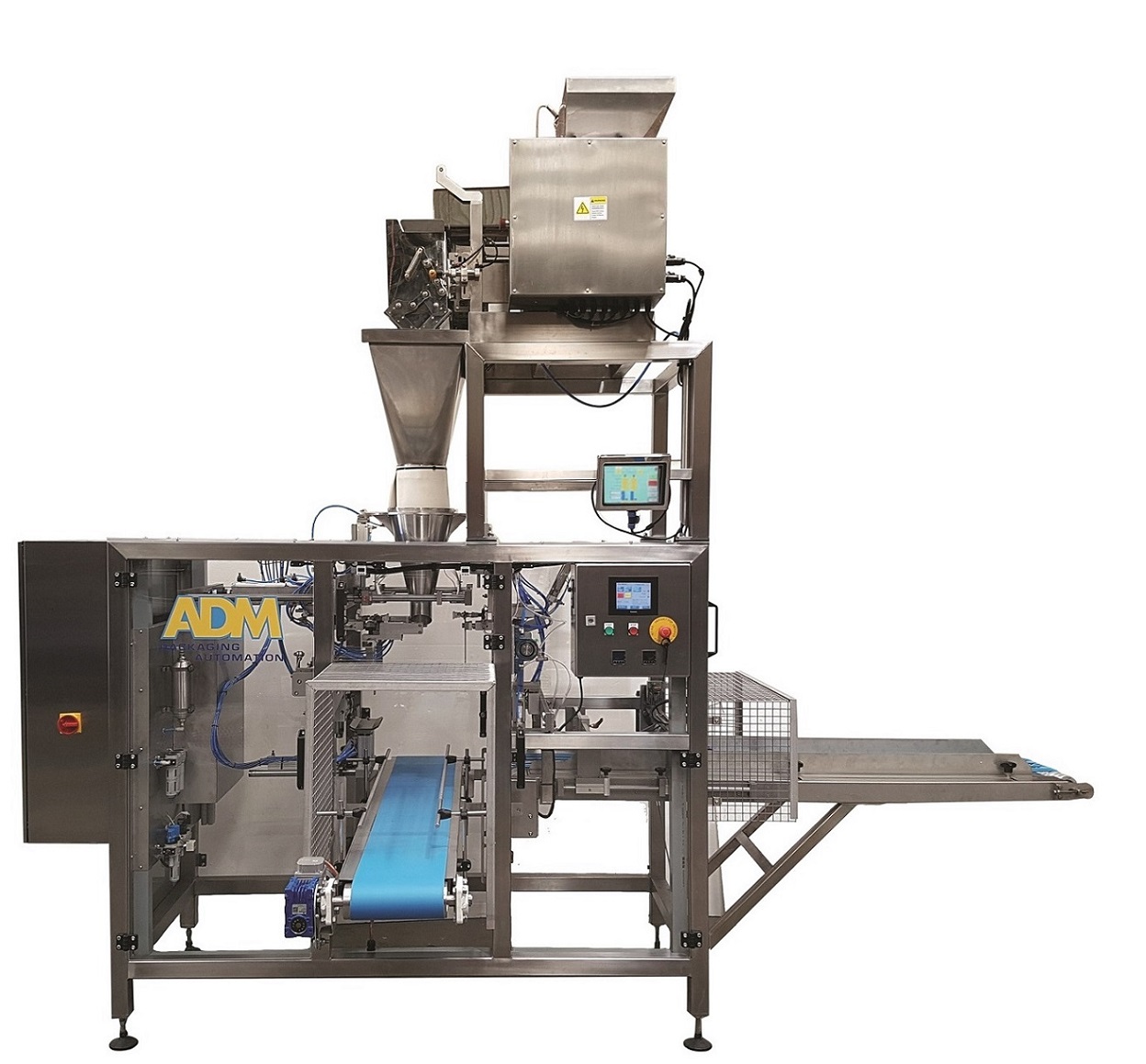

ADM-XD2 Series Pouch Packing Machine
The ADM-XD20 is engineered and built to local and international standards. Compact in size and loaded with automated process motion, it packs large pouch bags that many machines are not capable to do. It performs best with large opening bags and a high filling rate. It can be adapted to various styles of pouches.

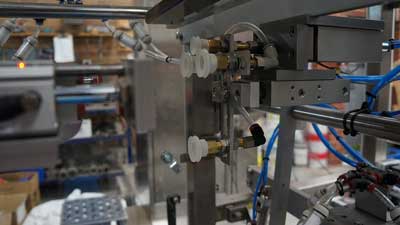

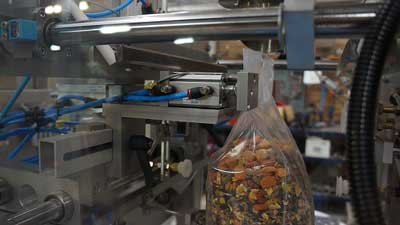

Made in Australia, it packs large demanding premade bags up to 15 Litres with ease. The bagger includes a bag carousel, bag feed and heavy duty hold grippers. grippers. The filling funnel also contains anti blockage device and product settler below. The ADM-XD20 is a workhorse for most applications that previously involved operators manually packing. It mostly requires one operator to setup and run the machine saving on labour and increasing output.
POUCH PACKAGING MACHINE – LARGE BAGS UP TO 10 Litres
Features
- Stainless steel construction
- Anodised aluminium parts
- Panasonic PLC
- Panasonic HMI touch screen
- Automatic bag infeed drive
- Bag support and shaker
- Robust components
- Automatic program setup
- Quick changeover
- Guarding and interlocks to AS4024 standards
- Omron temperature controller
- IMS driver
- Bag Styles: PILLOW, GUSSET, QUADSEAL, FLAT BOTTOM, DOY POUCH with zipper
- Bag Size: 200-360mm W, 300-500mm L, up to 120mm D
- Speed: up to 15 PPM
- Power Supply: 415V, 50Hz, 4.2kW
- Air Consumption: 0.4-0.5 CUM/MIN 0.6MPA
- Dimensions: 3450mm L x 1900mm W x 2000mm H
Specifications
| Model | ADM-XD20 |
| Bag Type | Pillow bag, Gusseted bag, Quadseal bags, Doy pouch |
| Bag Size | 200-360(W) x 300-500(L), Up to 120(D) |
| Speed | Max:15 BPM |
| Power supply | 415V 50Hz, 4.2kW |
| Air pressure | 0.4 m3/min 0.6 MPa |
| Packing Size | 3450(W) x 1900(L) x 2000 (H) |
