ADM-P Series – Pouch Filler
The ADM Inline Doy pouch packaging machine offers high speed packaging solutions for premade bags. It starts with pouch bags are fed from the bag carousel and loaded to the indexing stations.

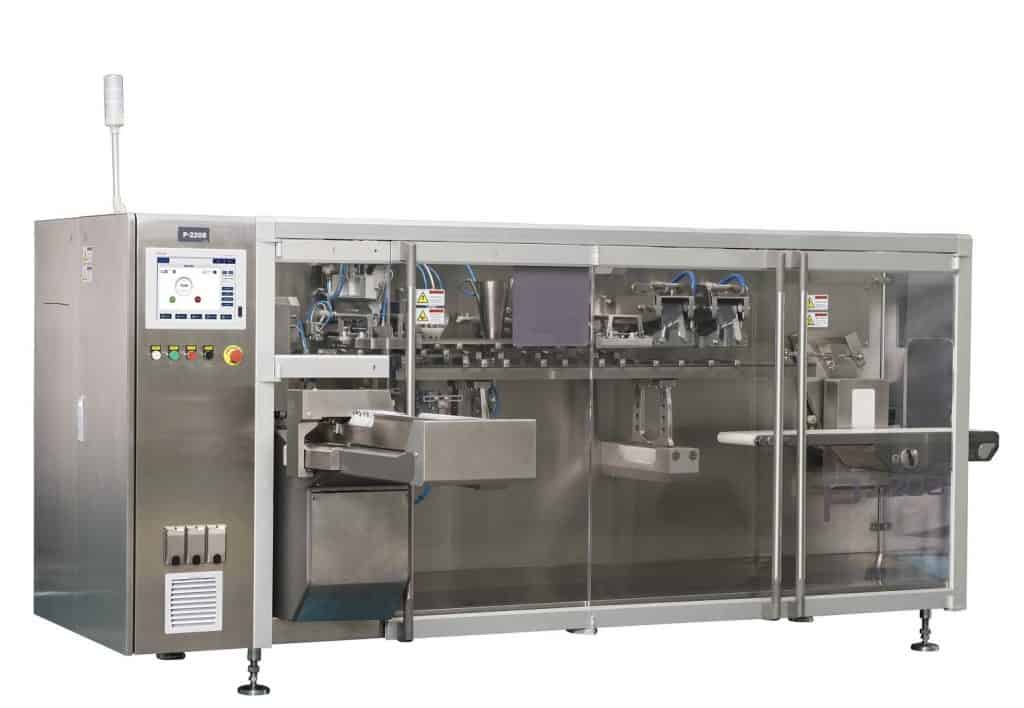

ADM-P22 Series Inline Pouch Packaging Machine
The ADM Inline Doy pouch packaging machine offers high speed packaging solutions for premade bags. It starts with pouch bags are fed from the bag carousel and loaded to the indexing stations. Here the bags undergo a series of processes at various stations including date printing, bag pre open, blow open, open bag check, filling, nitrogen gas option, close and seal stations. The synchronised process offers a fast more accurate and consistent performance in packaging. Presentation of bags coming off the line is made easy for packing into shippers
Features
- Stainless steel construction
- Allen Bradley PLC
- Allen Bradley HMI
- Omron, SMC, Festo sensors
- Schneider switches, push buttons, pilot lamps
- Omron temperature controlle
- Festo and SMC pneumatics
- Pheonix terminals
- Wuma motor
- Full safety guarding and interlocks (AS4024)

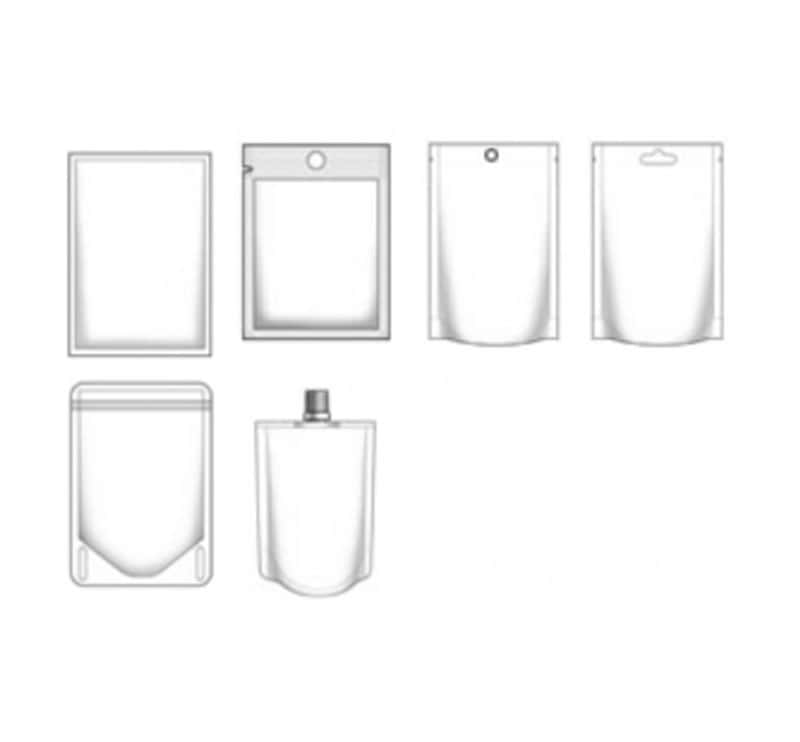

- Bag Styles: PILLOW, GUSSET, QUADSEAL, FLAT BOTTOM, DOY POUCH with zipper
- Bag Size: 85-210mm W, 140-280mm H, up to 100mm D
- Speed: up to 50 PPM
- Power Supply: 240V 50Hz, 415V 50Hz
- Air Consumption: 0.4-0.7 CUM/MIN 0.6MPA
- Dimensions: 2900mm L x 1050mm W x 1470mm H
Specifications
| Model | ADM-P22 | ADM-P22Z |
| Bag Type | Standup pouch or Flat bottom | Pouch with zipper |
| Bag Size | 85 – 210 (W) x 140 – 280 (H) x up to 100 (D) | |
| Speed | Up to 50 pouches/min | |
| Power supply | 240V 50Hz, 415V 50Hz | |
| Air consumption | 0.4 m3/min 0.6 MPa | |
| Noise level | <70 dB | |
| Weight | 1050 kg | |
| Machine dimension (LxWxH) | 2900 x 1050 x 1470 (mm) | |
ADM-P33 Series Inline Pouch Packaging Machine
The ADM-P33 series Inline Pre made stand up pouch packaging machine can be found manly packing large bags at high speed. Using a quality Allen Bradley brand PLC and HMI, the and installed in local and remote places across the country, the Allen Bradly product is a favourite choice amongst engineers. The premade bags can be stacked on a linear feeding carousel ready for pickup at the first stage. Utilising larger suction cups and fingers, the bigger bags are handled with ease as they pass each stage to the filling station. With the use of product settler and optional dust extractors, the high filling rate is made easy before the bag reaches the closing and sealing stages.
Features
- Stainless steel construction
- Allen Bradley PLC
- Allen Bradley HMI
- Omron, SMC, Festo sensors
- Schneider switches, push buttons, pilot lamps
- Omron temperature controller
- Wuma motor
- Pheonix terminals
- Full Safety Guarding
- CE Approved Electrical
Products packed include and not limited to dried pet foods, powder, granule, dairy powder, protein powder, spices, flour, oats, cereal, pasta, mixed lollies, beef jerky, pet foods, cookies and more
- Bag Styles: PILLOW, GUSSET, QUADSEAL, FLAT BOTTOM, DOY POUCH with zipper
- Bag Size: 150-315mm W, 200-480mm H, up to 120mm D
- Speed: up to 40 PPM
- Power Supply: 415V, 50Hz
- Air Consumption: 0.3-0.9 CUM/MIN 0.6MPA
- Dimensions: 3060mm L x 1300mm W x 2000mm H
Specifications
| Model | ADM-P33 | ADM-P33Z |
| Bag Type | Standup pouch or Flat bottom | Pouch with zipper |
| Bag Size | 150-315(W) x 200-480(H) x up to 120(D) | |
| Speed | Up to 40 pouches/min | |
| Power supply | 415V 50Hz | |
| Air consumption | 0.3-0.9 m3/min 0.6 MPa | |
| Noise level | <70 dB | |
| Weight | 1800 kg | |
| Machine dimension (LxWxH) | 3060x1300x2000(mm) | |

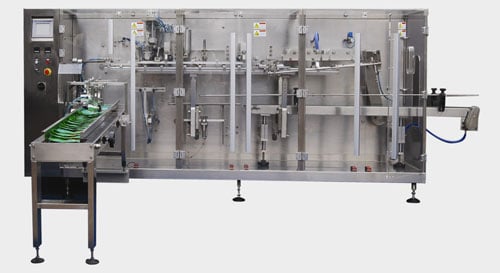

ADM-P38 Series – Pouch Filler
The ADM-P38 series Inline Pre made pouch packaging machine can be found manly packing large bags at high speed. Using a quality Allen Bradley brand PLC and HMI, the and installed in local and remote places across the country, the Allen Bradly product is a favourite choice amongst engineers. The premade bags can be stacked on a linear feeding carousel ready for pickup at the first stage. Utilising larger suction cups and fingers, the bigger bags are handled with ease as they pass each stage to the filling station. With the use of product settler and optional dust extractors, the high filling rate is made easy before the bag reaches the closing and sealing stages.
- Stainless Steel Construction
- Allen Bradley PLC
- Allen Bradley HMI
- Omron, SMC, Festo sensors
- Schneider switches, push buttons, pilot lamps
- Omron temperature controller
- Festo and SMC pneumatics
- Pheonix terminals
- Wuma motor
- Full Safety Guarding
- CE Approved Electrical
Products packed by our pouch packaging machine include and not limited to dried pet foods, powder, granule, dairy powder, protein powder, spices, flour, oats, cereal, pasta, mixed lollies, beef jerky, pet foods, cookies and more
- Bag Styles: PILLOW, GUSSET, QUADSEAL, FLAT BOTTOM, DOY POUCH with zipper
- Bag Size: 210-350mm W, 280-480mm L, up to 130mm D
- Speed: up to 40 PPM
- Power Supply: 415V, 50Hz
- Air Consumption: 0.3-0.9 CUM/MIN 0.6MPA
- Dimensions: 4065mm L x (1150+2380mm) W x 1570mmH
Specifications
| Model | ADM-P380 | ADM-P380Z |
| Bag Type | Standup pouch or Flat bottom | Pouch with zipper |
| Bag Size | 210-350(W) x 280-480(H) x up to 130(D) | |
| Speed | Up to 40 pouches/min | |
| Power supply | 415V 50Hz | |
| Air consumption | 0.3-0.9 m3/min 0.6MPa | |
| Noise level | <70 dB | |
| Weight | 1800 kg | |
| Machine dimension (LxWxH) | 4065x(1150+2380)1570(mm) | |
