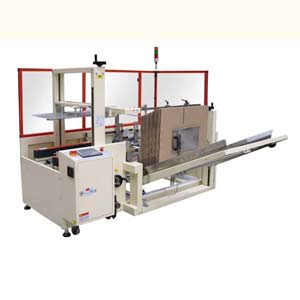

ADM Case Erector
e nobis magni ventibus molupient et ea doluptaquo quam, quiam doluptur, sumquidus inulpa dollores num ditendae. Elit et landa saperiore pario. Ruptatiam volenis mossimi llesciis sequate autas recuptatium verendis eatur magnam num andestion et vero bla sunt, sam, qui ut esciam fugiam etur seque volupta turesequis et voluptur? El ex eati blateceprae event libus ea plaborepe res id que ne ma dolorep eribernatem. Acil eos voluptata doluptatur sum quod modi dit ut acero dolore arum nes andandae sit, cum estiam repeliqui nis as maioribus alit que nis plaborp orescil exerum faccus assus, ad quasperrum volupta quodictaqui officiat acia alibus id quibusa sam nim quodis ex et facerfe
The case erectors are a basic construction to suit most cases sizes for or time saving labour. With a user friendly HMI control and basic setup procedures, the result is an easy transition to automating case erecting.
The lower tape dispenser is included and an optional hot melt glue can be fitted. Contact us to discuss your next application.
- Heavy duty construction
- Vertical storage, cartons can be added at any time without stopping the machine
- Suitable for forming and sealing cartons of the same size.
- Panasonic Touch Screen Operator Interface
- Panasonic PLC - Based Control System
- Manually adjust to change the carton sizes (within 5 minutes)
- Rational design: the forming, folding and sealing process are accomplished simultaneously;
- Cutter Safety system to prevent hands from being stabbed by the cutter
- Full Safety Guarding and Interlocks
- Motor: GPG, Pneumatics : Shrko, Cutter: Japan SK-2, Sensor: Omron
Specifications
| Model | ADM-CE18 |
| Carton Size | L200-400×W150-350×H100-350mm |
| Speed | 18cpm |
| Tape Width | 48mm, 60mm, 75mm (Choose one type) |
| Air Consumption | 450 L/min @ 6 bar |
| Table Height | Mim.550mm, Max.650mm |
| Machine Size | L2000×W1900×H1450mm |
| Power supply | 240V 50Hz 0.4kW |
| Weight | 600kg |
